- POP OFF CENTER CAP TO EXPOSE PHILLIPS SCREW
- LOOSEN SCREW TO REMOVE HINGE CAP

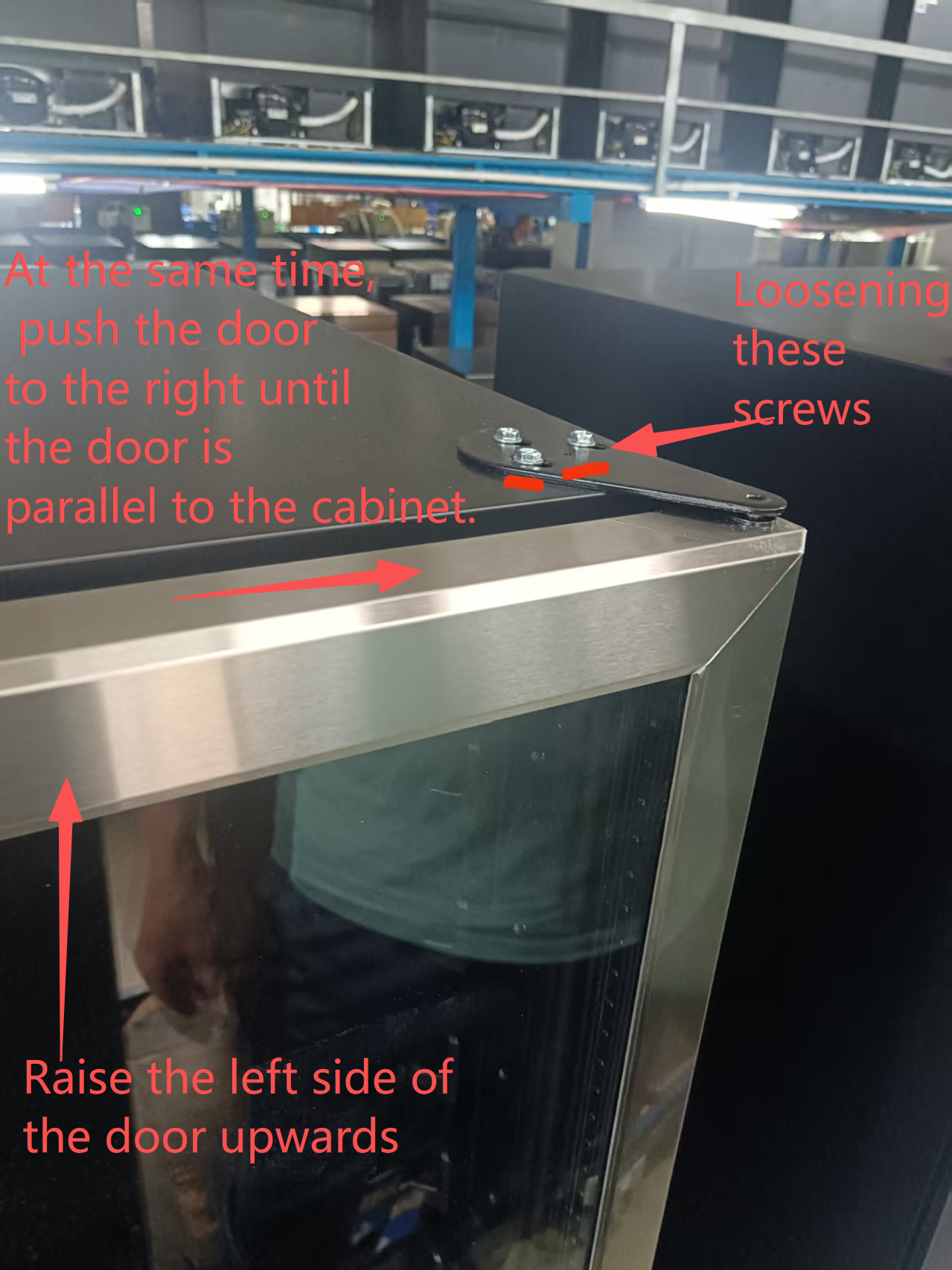

- LOOSEN AND ADJUST THE 3 SCREWS AS NEEDED TO ALIGN DOOR TO ENSURE GOOD SEAL
EL-300TS BOTTOM HINGE ADJUSTMENT AND WIRE HARNESS DISCONNECT
The harness should be accessible at the bottom right hinge, the cap would pop off and there’d be a
male to female plug.
