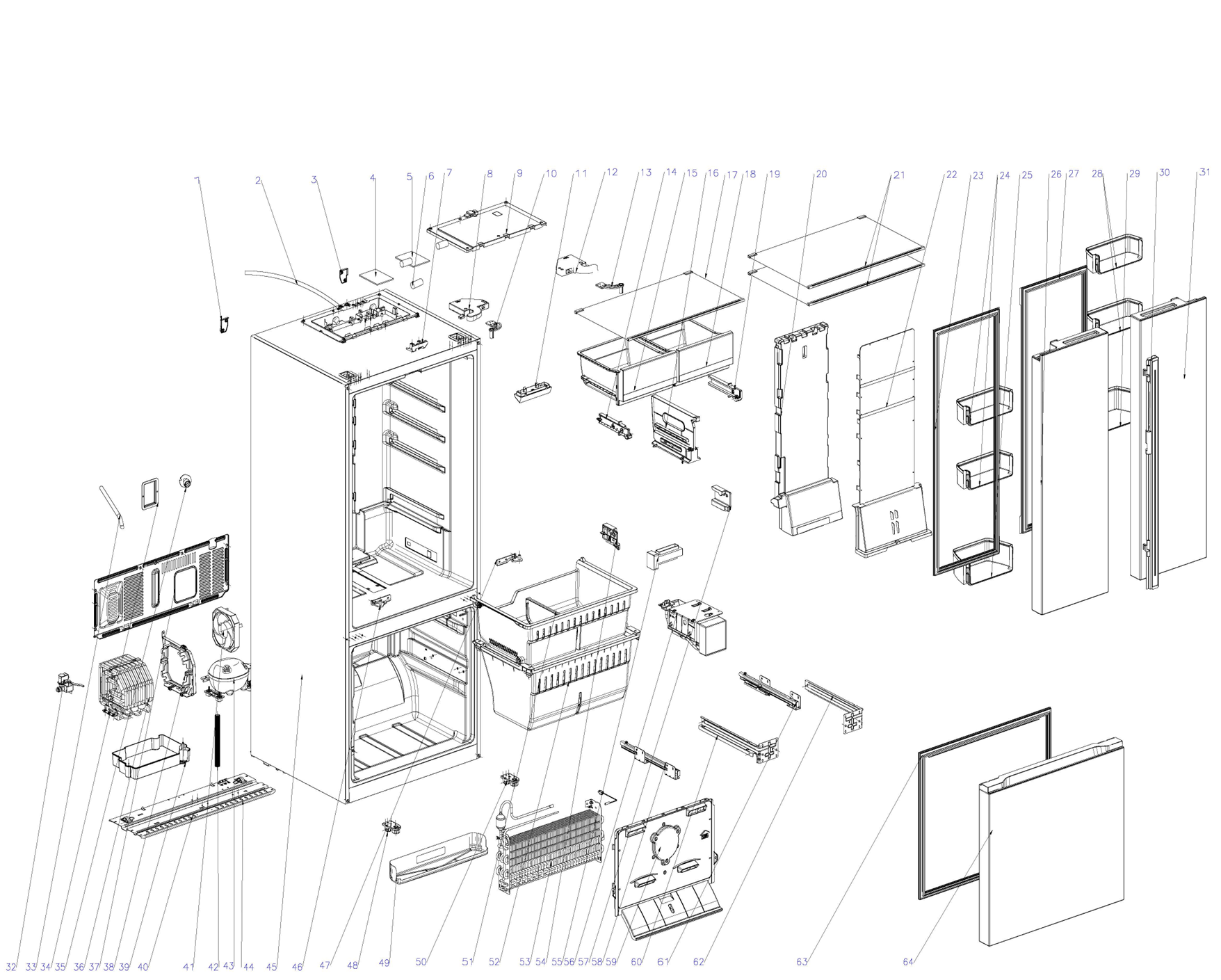

| 1 |
| Rear corner cover left | GS000239006 | 1 | PART# | Z-GS000239006 |
| 2 |
| Power cord assembly | DA000042201 | 1 |
|
| 3 |
| Rear corner cover right | GS000239206 | 1 |
| Z-GS000239206 |
| 4 |
| Main control board | DA000060402 | 1 |
| Z-DA000060402 |
|
| Main control board | DA000060402 | 1 |
| Z-DA000060402 |
| 5 |
| Frequency conversion control board | DA000028001 | 1 |
| Z-DA000028001 |
| 7 |
| guide seat assembly | GS000238801 | 1 |
|
|
| 8 |
| Upper hinge cover assembly (left) | GA0000239L7 | 1 |
| Z-GA0000239L7 |
| 9 |
| Power control box cover assembly | GA000015817 | 1 |
| Z-GA000015817 |
| 10 |
| Upper hinge welding assembly | GA0004021L1 | 1 |
|
| 11 |
| Internal display and control unit | GA000811909 | 1 |
| Z-GA000811909 |
| 1-Nov |
| Fridge LED light | DA000904801 | 1 |
|
| 12 |
| Upper hinge cover component (right) | GA000563310 | 1 |
| Z-GA000563310 |
| 13 |
| Upper hinge welding assembly | GA0004021L1 | 1 |
|
| 14 |
| Single wheel left short guide rail assembly | GA000016301 | 1 |
| Z-GA000016301 |
| 15,18 |
| Drawer assembly of fruit and vegetable box | GA000065703 | 2 |
| Z-GA000065703 |
| 16 |
| Partition assembly in refrigeration | GA000056901 | 1 |
| Z-GA000056901 |
| 17 |
| Fruit and vegetable box cover assembly | GA000195103 | 1 |
| Z-GA000195103 |
| 19 |
| Single wheel right short guide rail assembly | GA000016401 | 1 |
| Z-GA000016401 |
| 20 |
| Refrigerated duct foam assembly | GA000053401 | 1 |
| Z-GA000053401 |
| 21 |
| Shelf as-refrigeration | GA000167601 | 3 |
| Z-GA000167601 |
| 22 |
| Cover assembly of refrigeration air duct | GA000263011 | 1 |
| Z-GA000263011 |
| 23 |
| Refrigeration door seal assembly | GA000077801 | 2 |
| Z-GA000077801 |
| 24,25,28 |
| Gall bottle frame | GS000081702 | 6 |
| Z-GS000081702 |
| 26 |
| Refrigerated left foam door body | GA000095006 | 1 |
| Z-GA000095006 |
| 27 |
| Refrigerated left foam door body | GA000077801 | 2 |
| Z-GA000077801 |
| 29 |
| Flip beam assembly | GA000249302 | 1 |
| Z-GA000249302 |
| 30 |
| Refrigerated right foam door body | GA000095106 | 1 |
| Z-GA000095106 |
| 31 |
| Display control panel | DA000027001 | 1 |
| Z-DA000027001 |
| 31-1 |
| Display panel lamination | DA000122501 | 1 |
| Z-DA000122501 |
| 34 |
| Water inlet pipe cover | GS010112201 | 1 |
| Z-GS010112201 |
| 36 |
| Condenser assembly | LA000692901 | 1 |
| Z-LA000692901 |
| 37 |
| Compressor rear cover plate assembly | GA000045203 | 1 |
| Z-GA000045203 |
| 38 |
| Condenser fan bracket | GS000555801 | 1 |
| Z-GS000555801 |
| 39 |
| Water box assembly | GA000045601 | 1 |
| Z-GA000045601 |
| 40 |
| Compressor bottom plate assembly | GA000046201 | 1 |
| Z-GA000046201 |
| 41 |
| Integrated condensing motor | DA000560701 | 1 |
| Z-DA000560701 |
| 42 |
| a drain | GS000575001 | 1 |
|
| 43 |
| Compressor assembly | LA000004401 | 1 |
| Z-LA000004401 |
| 46 |
| Middle hinge left assembly | GJ0000437L2 | 1 |
|
| 47 |
| Middle hinge right assembly | GJ0000437R2 | 1 |
|
| 48 |
| Roller support assembly - left | GA0002410L2 | 1 |
| Z-GA0002410L2 |
| 50 |
| Hydrops | GK000008302 | 1 |
| Z-GK000008302 |
| 50 |
| Roller support assembly - right | GA0002410R2 | 1 |
| Z-GA0002410R2 |
| 51 |
| Freezing upper drawer assembly | GA000078102 | 1 |
| Z-GA000078102 |
| 52 |
| Freeze lower drawer assembly | GA000078201 | 1 |
| Z-GA000078201 |
| 53 |
| Evaporator assembly | LA000006101 | 1 |
| Z-LA000006101 |
| 54 |
| Upper drawer stop - left | GS0000869L1 | 1 |
| Z-GS0000869L1 |
| 55 |
| Electric damper | DA000943001 | 1 |
| Z-DA000943001 |
| 57 |
| Upper drawer stop - right | GS0000869R1 | 1 |
| Z-GS0000869R1 |
| 58 |
| Metal slide - left | GA0000048L1 | 1 |
| Z-GA0000048L1 |
| 59 |
| Cover assembly of cooling air duct | GA000047401 | 1 |
| Z-GA000047401 |
| 60 |
| Rail bracket - left | GK0000015L1 | 1 |
| Z-GK0000015L1 |
| 61 |
| Metal slide - right | GA0000048R1 | 1 |
| Z-GA0000048R1 |
| 62 |
| Rail bracket - right | GK0000015R1 | 1 |
| Z-GK0000015R1 |
| 63 |
| Drawer door seal assembly | GA000042901 | 1 |
| Z-GA000042901 |
| 64 |
| Freezing drawer foam door body | GA000095201 | 1 |
| Z-GA000095201 |
