All pertinent data has been consolidated below along with parts list and breakdowns attached.
Please remember that all established M3 part numbers begin with the “Z-“ format.
If you try to cross reference a part number from raw excel file that has no “Z-“, it won’t show in M3.
Those would need to be added into M3 by TLC admin.
SKU: BR3001SSGG
SKU: BR-36SSGG
SKU: BR3601SSDF
SKU: BR4801SSDF
SKU: BR-48SSGG

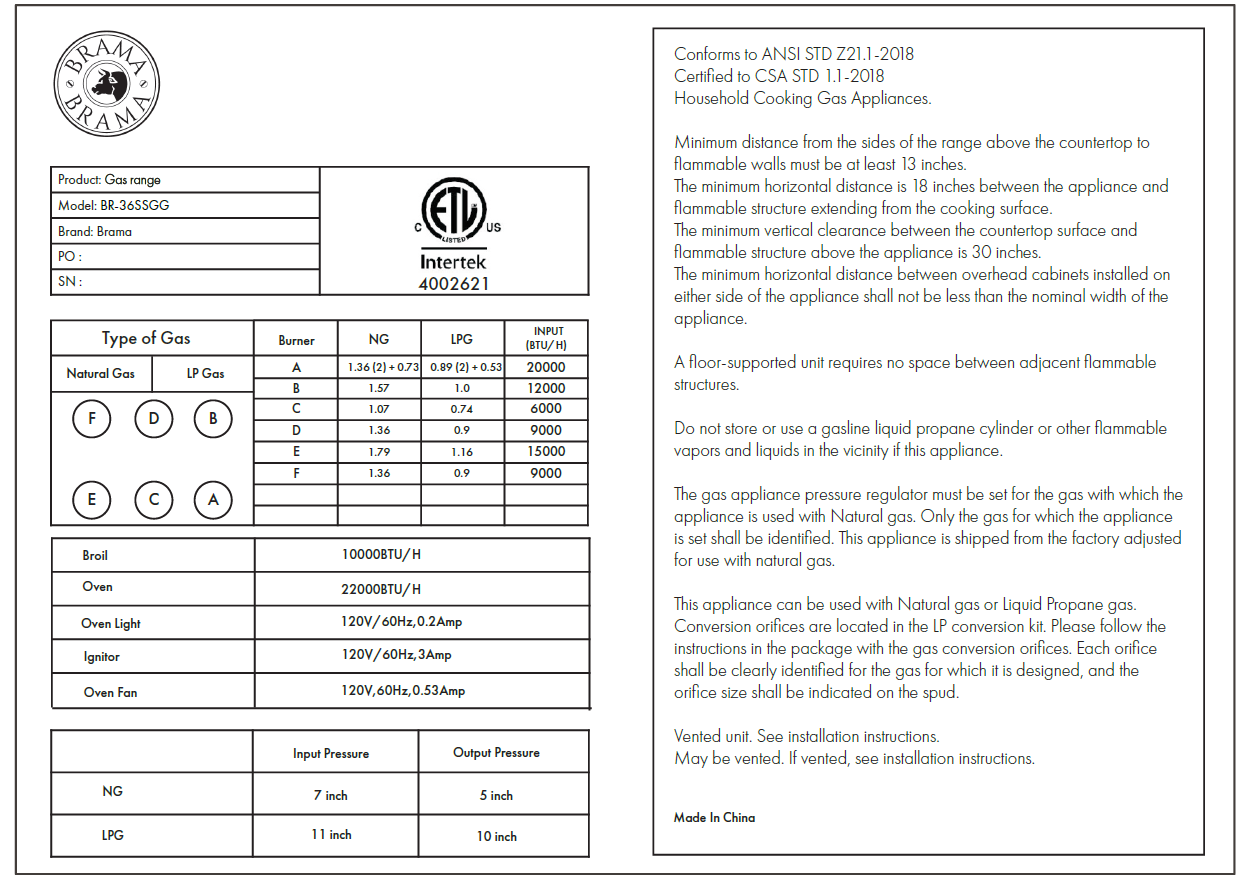

BURNER IDENTIFICATION AND CORRESPONDING BURNER PARTS

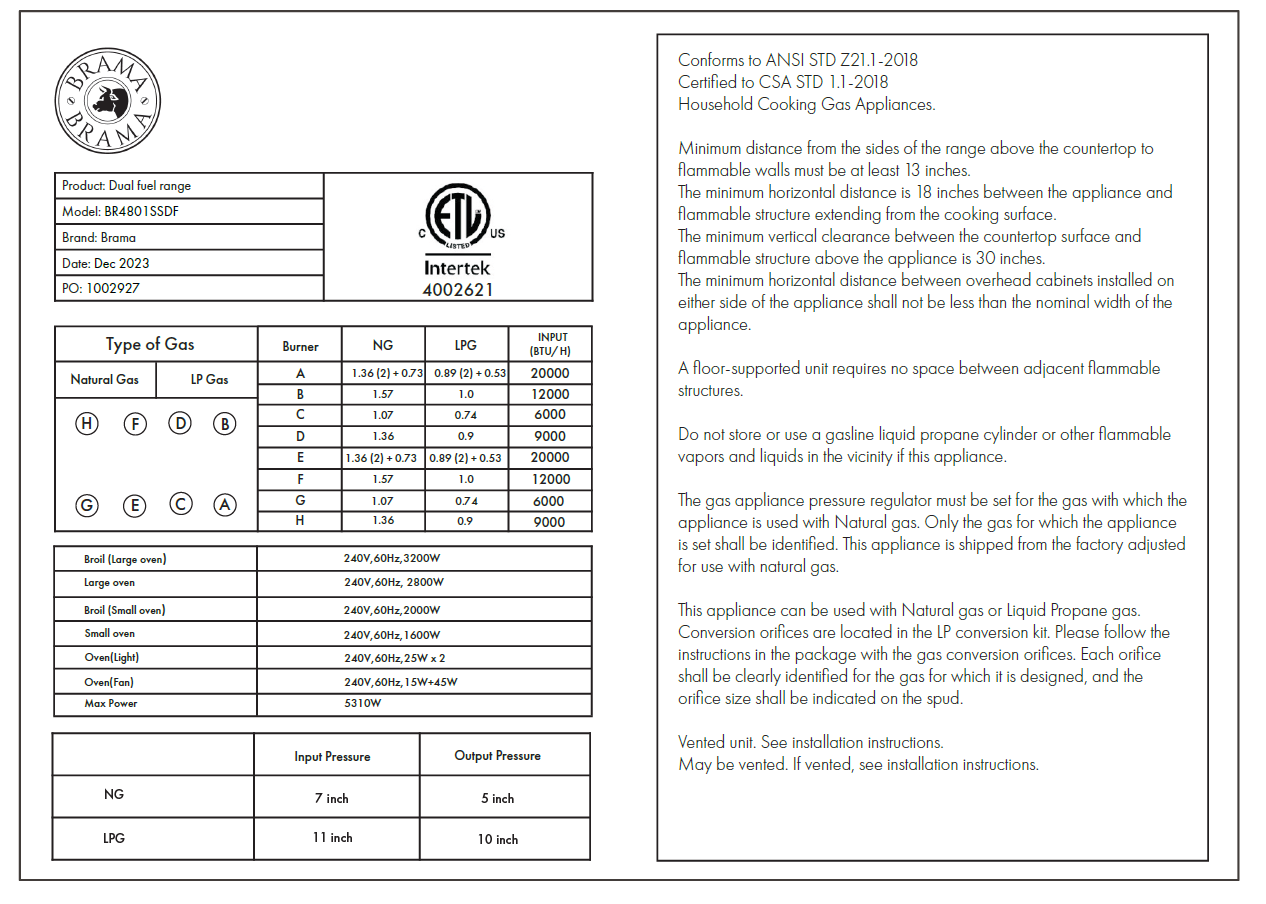

Please see below BTU output.

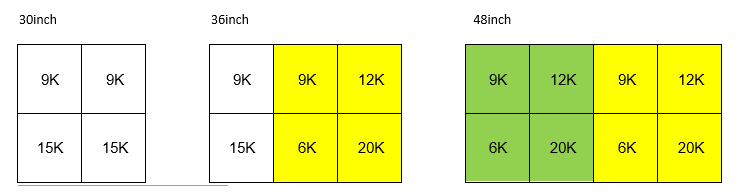

Each type of burner are same for the different models (for example 20K burner of 36” is same as 20K burner of 48). They are interchangeable.
Burner type | BTU |
U SHAPE BURNER (DUAL RING) | 20,000 BTU |
Auxilary burner | 1* 6,000 BTU |
Semi-rapid burner | 2* 9,000+12,0000 BTU |
Rapid burner | 15,000 BTU |
Broil Burner | 10,000 BTU |
Bake Element | 22,000BTU |
Z142002000026 | AUXILIARY BURNER SPREAD | BR36SSGG/BR360DF/DE360GRSSS/BR48SSGG/BR480DF/DE480GRSSS |
Z142002000027 | SEMI-RAPID BURNER SPREAD | BR36SSGG/BR360DF/DE360GRSSS/BR48SSGG/BR480DF/DE480GRSSS |
Z142002000028 | RAPID BURNER SPREAD | BR36SSGG/BR360DF/DE360GRSSS/BR48SSGG/BR480DF/DE480GRSSS |
Z142002000030 | DUAL RING BURNER SPREAD | BR36SSGG/BR3601SSDF/DE360GRSSS |
Z142002000031 | AUXILIARY BURNER CAP | BR36SSGG/BR360DF/DE360GRSSS |
Z142002000032 | SEMI-RAPID BURNER CAP | BR36SSGG/BR3601SSDF/DE360GRSSS |
Z142002000033 | RAPID BURNER CAP | BR36SSGG/BR360DF/DE360GRSSS |
Z142002000035 | DUAL RING BURNER CAP OUTER | BR36SSGG/BR3601SSDF/DE360GRSSS |
Z142002000100 | U SHAPE BURNER | BR36SSGG/BR3601SSDF/DE360GRSSS |
Z142002000138 | SEMI-RAPID BURNER | BR36SSGG/BR3601SSDF/DE360GRSSS |
Z142002000140 | RAPID BURNER | BR36SSGG/BR3601SSDF/DE360GRSSS |
Z142002000157 | SPARK TIP FOR DUAL RING BURNER | BR36SSGG/BR3601SSDF/DE360GRSSS |

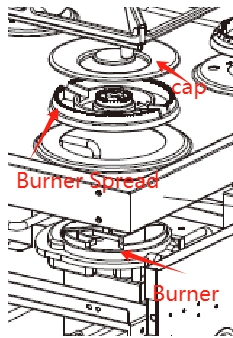

Please note burners set include burner ,Burner Spread, and Burner Cap, please see the part number. Please see attached burner parts number and latest Exploded view.
The spare part# Z142001000023，Z142001000009，Z142001000001
The spare part#Z142001000025, Z142001000169
They are compatible with all the 5 old ranges that Seng has ever produced for us.
BR-3001SSGG|BR-36SSGG|BR-48SSGG|BR3601SSDF|BR4801SSDF
Part# | Photo | Spare part | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Z142001000025 |

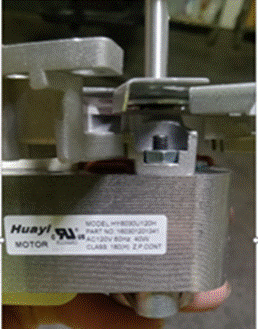

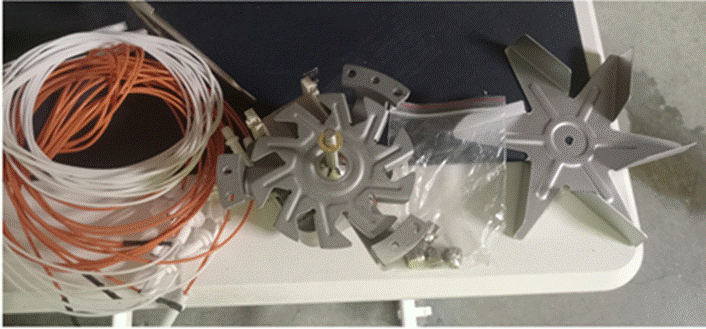

| Convection Fan | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||

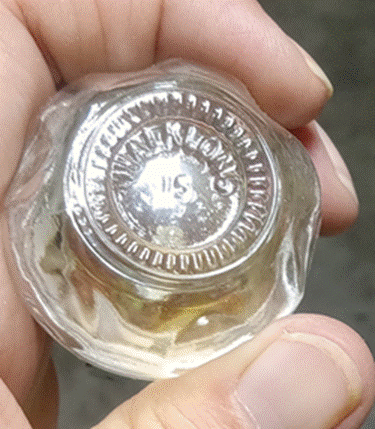

Z142001000023 |

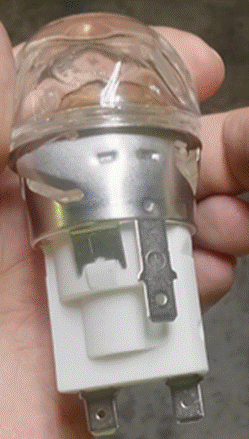

| Lamp | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Z142001000169 |

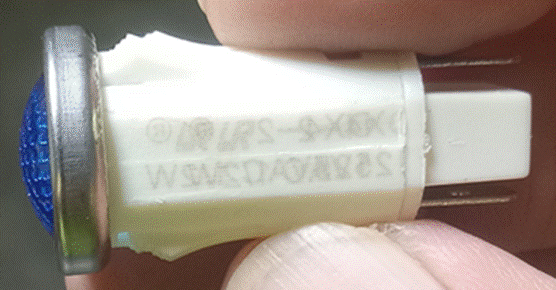

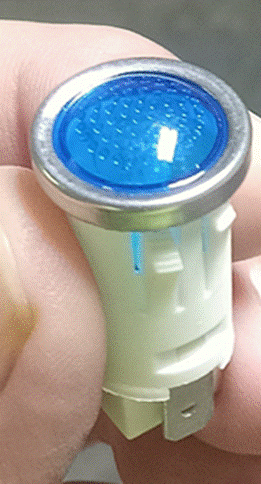

| Indicator Light for Oven | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Z142001000009 |

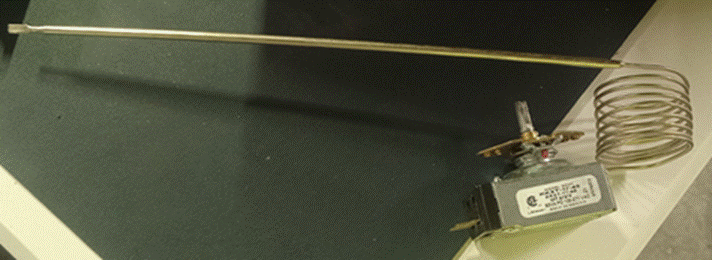

| thermostat valve | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Z142001000001 |

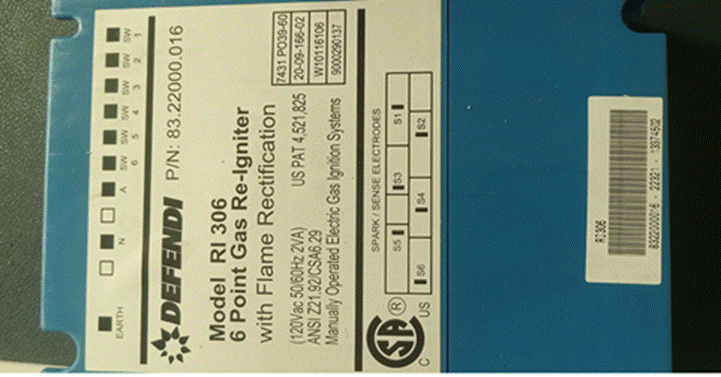

| EGO ignition | |||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Z-142002000019 - IGNITER FOR OVEN BURNER
Z142001000028 - CONVECTION/COOLING FAN
Z142001000250 - PCB
Z-142002000551 - SINGLE RING GAS VALVE

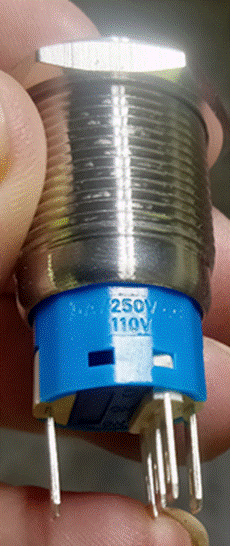

Z-122000104038 - CONNECTION FOR PUSH BUTTON SWITCH
Z182000400138 - 36 INCH OVEN HANDLE (SAME ACROSS 36/48 INCH MODELS)
Z142002000105 - NOZZLE FOR BAKE BURNER
Z142001000060 - Glide rails for oven racks

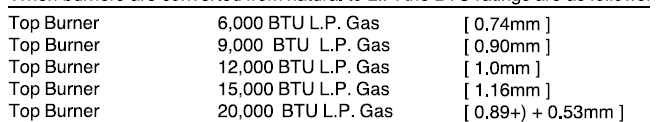

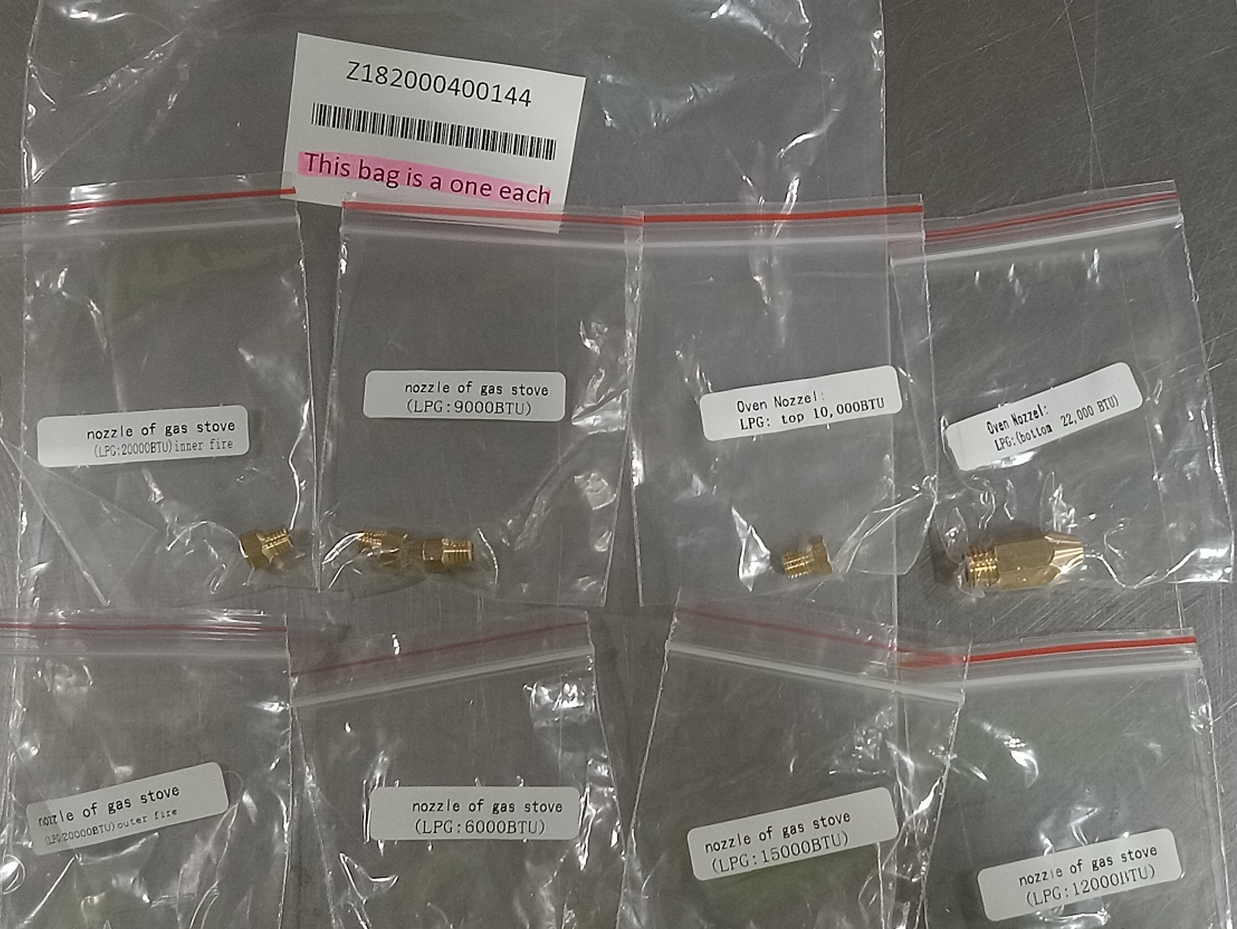

BRAMA LP GASKIT ORIFICE: Z182000400144

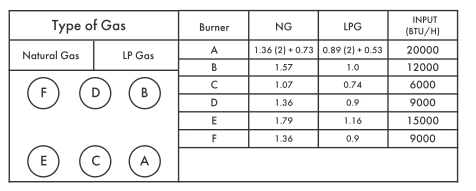

The LP orifices are the same no matter the sku, its contingent on BTU output.
See attached documents for additional details.
