EL-168COMM AND EL-300COMM DISPLAY BOARD INSTALL

DISPLAY BOARD ACCESS:

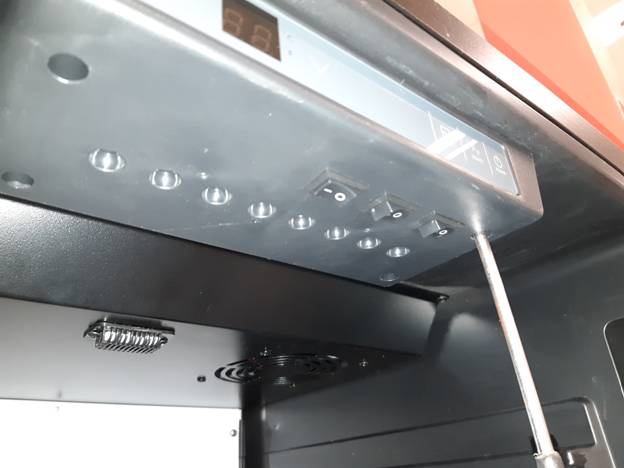

1. LOCATE THE 4 PHILLIPS SCREWS AT EACH CORNER ON THE UNDERSIDE

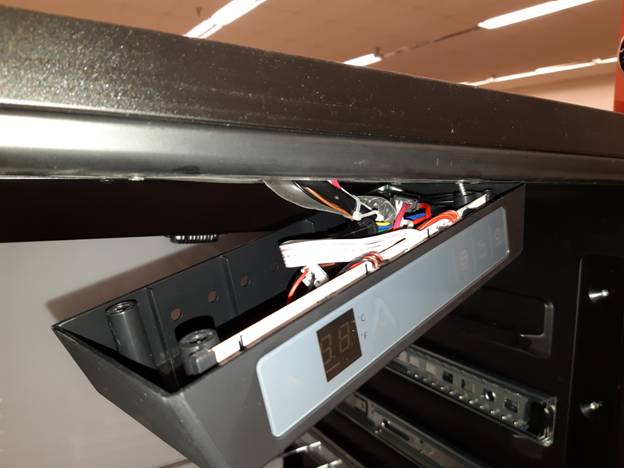

2. PROCEED TO REMOVE HOUSING TO EXPOSE WIRING HARNESS

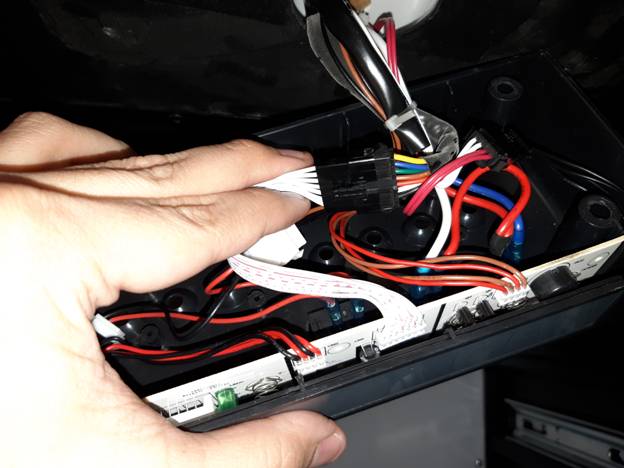

3. PROCEED TO DISCONNECT THE 3 WIRE HARNESSES FROM THE DISPLAY BOARD
4. AND REPLACE THE DISPLAY BOARD
