Technician would need to check to see if the proper voltage from pcb is being generated for the heater cooktop coils and the bake and broil heater elements for the oven compartment.
If not the digital thermocontrol system would need replaced.

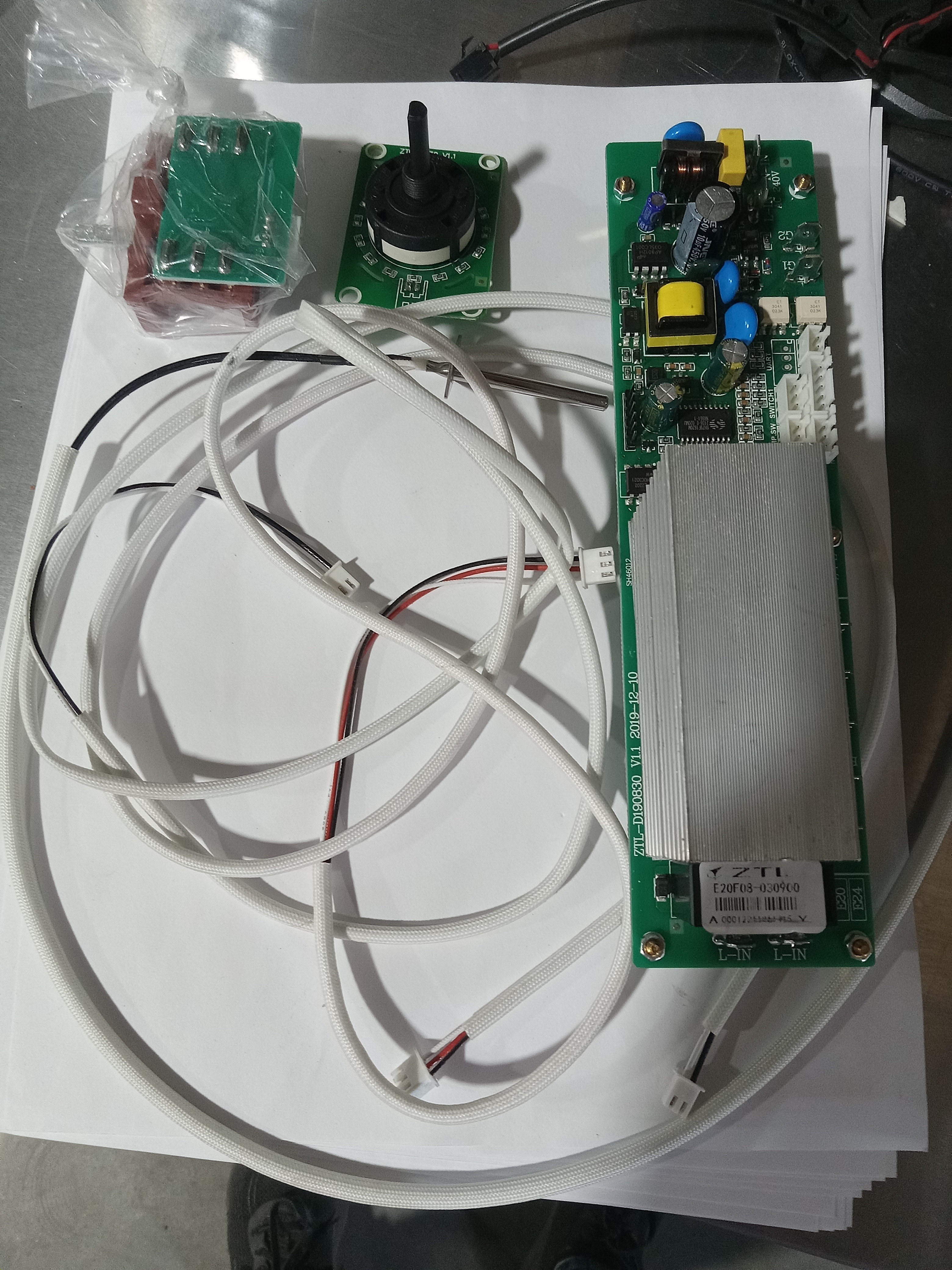

DIGITAL THERMOCONTROL SYSTEM: Z-E20F08-030900

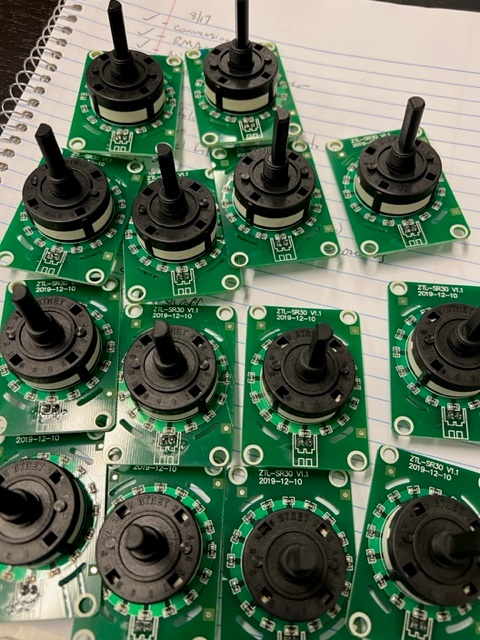

TEMPERATURE CONTROL SWITCHES: AVANTI ELECTRIC RANGE MODELS:
DER20P3S / ERU200P0W |
ERU200P0W |
Extended Item# (Factory Code) | M3 Item Number | Product-Name | Description | Long-Description |
Z-E24F01-100700 | Z-E24F01-100700 | Cushion for Thermo Controller | DER20P3S / ERU200P0W | Cushion for Thermo Controller DER20P3S / ERU200P0W VEZSIN |
Z-E20F03-030900-01 | Z-E20F03-030TCS | Temperature Control Switch | ERU200P0W | Temperature Control Switch ERU200P0W VEZSIN |
Z-E20F08-030900-01 | Z-E20F08-030TCS | Temperature Control Switch | DER20P3S | Temperature Control Switch ERU200P0W VEZSIN |

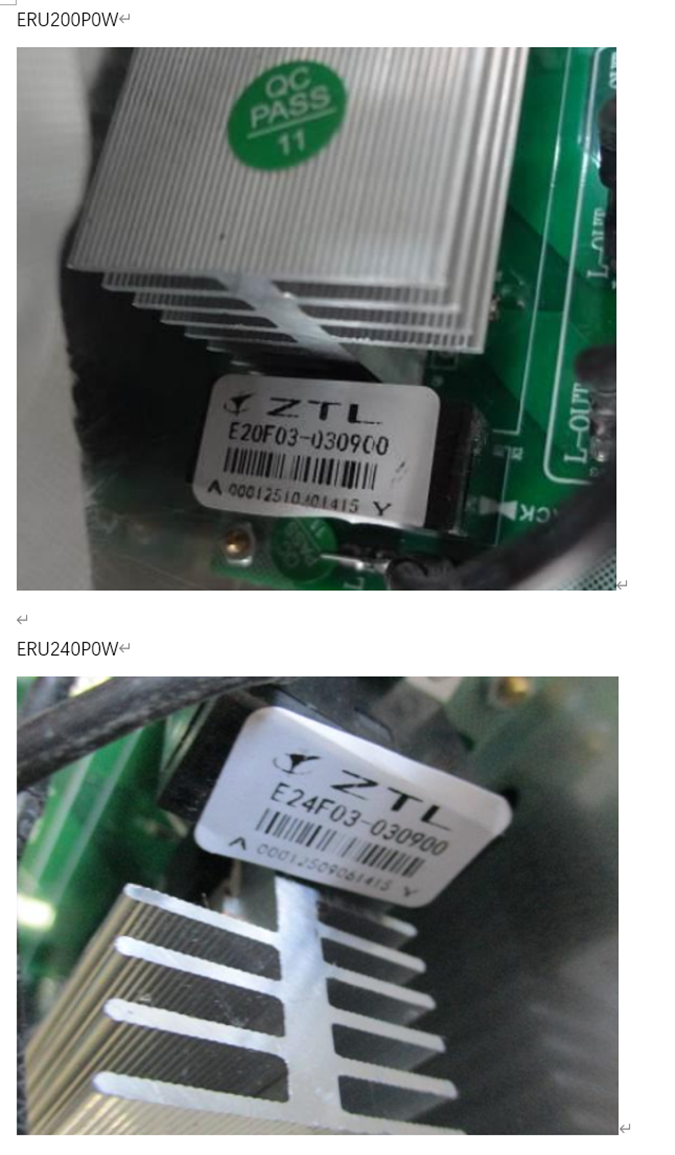

PIC # 2
Z-E20F03-030900-01

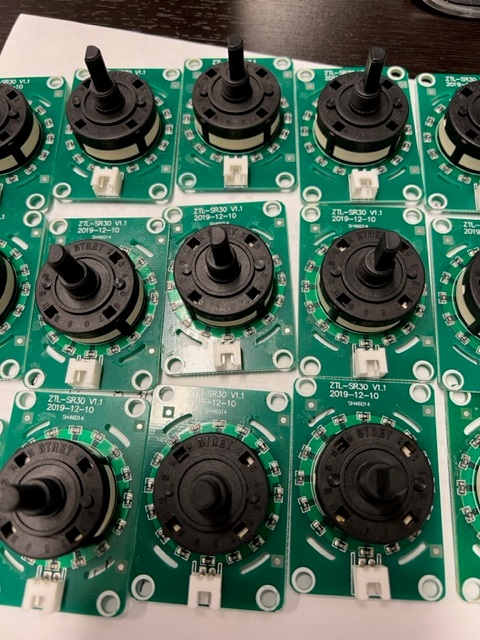

PIC # 3
Z-E20F08-030900-01
